Description
Description
The petrolatum coating system is designed for corrosion protection of buried or exposed or marine pipes rods, cables, valves and metal fittings, tanks. it consist of
petrolatum tape,
petrolatum mastic,
petrolatum primer,
outer tape

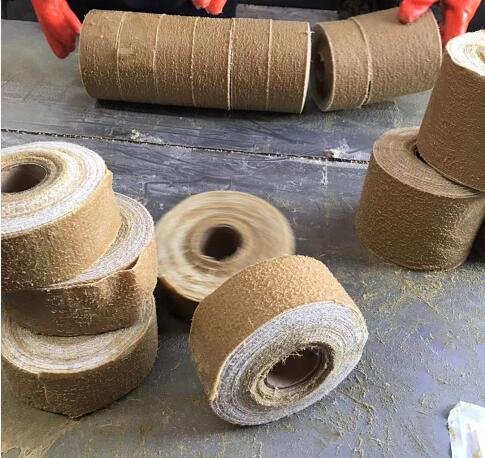

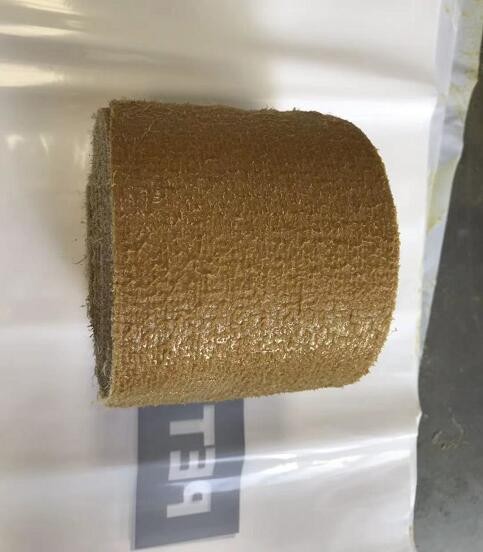

Petrolatum Tape
Petrolatum tape is a non-hardening and non-cracking corrosion protection wrap . It is highly resistant to mineral acids, alkalis, salts and micro-organisms and highly impermeable to water vapor and gases. Used for the protection of buried or exposed pipes, rods, cable, valves and metal fittings from corrosion.
It is composed of a non woven fibre fabric coated with a neutral compound based on saturated petrolatum and inert siliceous fillers.
Petrolatum Mastic
Petrolatum mastic is a cold applied mastic for sealing and filling the pipeline valve 、flange etc.
It suitable for application in a wide range of climatic conditions. It is used for moulding around irregular profiles such as flange 、valve、joint to provide a contour that suitable for wrapping the petrolatum tape. It contains inert siliceous fillers and vegetable fibers.
Petrolatum Primer
Petrolatum primer is a tacky adhesive primer for use with petrolatum tape .High melting point petrolatum in hydrocarbon solvent . Petrolatum primer is a semi solid paste for brush application.
Outer Tape
The outer tape is designed for protection of petrolatum tape, it should applied after petrolatum tape
Product Features
UV resistance
Suitable to irregular shapes and profiles
It can be applied to cold ,wet surfaces.
It can be applied above and below ground.
Excellent resistance water, acid, salts or soil organics
Product Properties
Petrolatum tape
|
Property |
Typical Value |
|
Tensile Strength |
＞40N/cm |
|
Elongation |
15% |
|
Breakdown Voltage(55% overlap) |
＞18KV |
|
Chemical Resistance (7days ,10% Hydrochloric Acid) |
Excellent |
|
Chemical Resistance (7days ,20% Sodium Chloride) |
Excellent |
|
Chemical Resistance (7days ,10% Potassium Chloride) |
Excellent |
|
Color |
Brown、Light Yellow |
|
Thickness |
1.2mm |
|
Width |
50mm,100mm,150mm |
|
Length |
10m |
|
Weight |
1.4kg/m2 |
|
Temperature Range Application Service |
-30℃ - 70 ℃ -5 ℃- 45 ℃ |
Petrolatum Mastic
|
Property |
Typical Value |
|
Color |
Brown,White |
|
Specific Gravity |
1.40 |
|
Specific Volume |
720cm3 /cm |
|
Flashing Point |
＞180℃ |
|
Temperature Range For Application For service |
0℃ - 55℃ 90℃ -120℃ |
Petrolatum Primer
|
Property |
Typical Value |
|
Specific Gravity |
0.98 |
|
Flash Point |
≥35℃ |
|
Covering Capacity |
5m2/ liter |
|
Wet Film Thickness |
230 micron |
|
Dry Film Thickness |
160micron |
|
Dry Time |
60 minutes |
|
Temperature Range For Application For Service |
-5℃ -50℃ 70℃ maximum |
Outer protection tape
|
Property |
Typical Value |
|
Materials |
PVC self adhesive tape |
|
Color |
Black or yellow |
|
Thickness |
0.4mm,0.5mm |
|
Width |
50mm,100mm,150mm |
|
Length |
30m |
|
Elongation |
>200% |
|
Usage |
Special manufacturing, with excellent flexibility, adhesion in their own lap, tightly wrapped around the oil tank coating to protect the oil zone coating to prevent the loss of grease to improve the mechanical protection strength and electrical insulation. |
